Propriétés techniques
Frequency Response
20 Hz – 20kHz 0 (+/-) 1.0 dB
Dynamic Range
More than 100dB (Typical 106 dB)
Ham and Noise
less than -76dB
THD
less than 0.007% (1kHz, max. level)
Input/ Number of Channel
2
Input/ Nominal Level
+4dB/-20dB (with level select switch)
Input/ Maximum Level
+24dB (nominal level +4dB)
Input/ Impedance
20 K ohm
Output/ Number of channel
2
Output/ Nominal Level
+4dB/-20dB (with level select switch)
Output/ Maximum Level
+24dB (nominal level +4dBm)
Output/ Impedance
150 ohm
AD Conversion
20bit, 64Fs over sampling
DA Conversion
20bit, 8Fs over sampling
Sampling Frequency
50 KHz
Propagation Delay
2.8 milliseconds
User Program
100

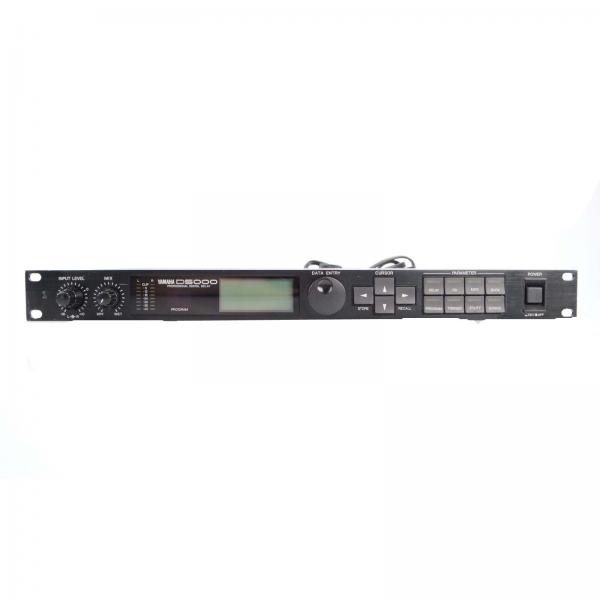

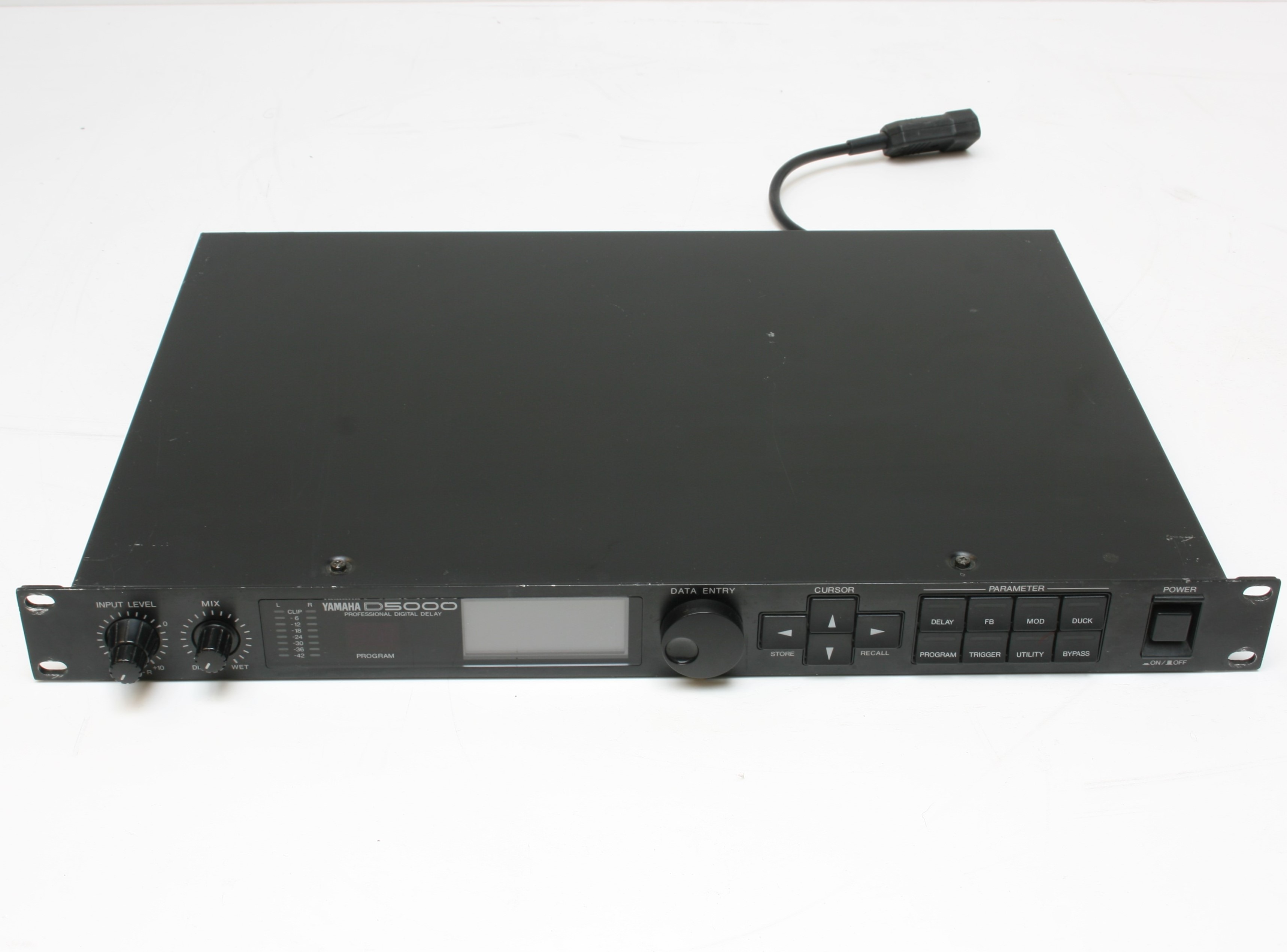

Front Panel/ Knob
Input Level, Mix, Data Entry
Front Panel/ Key
Left arrow (Store), Right Arrow (Recall), Up arrow, Down arrow, Program, Utility, Trigger, Bypass, Delay, FB, Mod, Duck, Power
Front Panel/ Display
56 x 128 dot LCD 8-segment LED x 2 (level meter) 7-segment LED x 2 (program no.) Key LED x 8 (Delay, FB, MOD, Duck, Program, Trigger, Utility, Bypass)
Rear Panel/ Connector
Input L,R (XLR x 2, phone x 2) Output L,R (XLR x 2, phone x 2) MIDI In, Thru/Out (DIN 5p x 2)
Rear Panel/ Switch
Input + 4dB/-20dB Output +4dB/-20dB Thru/Out (MIDI)
Rear Panel/ Jack (Foor SW)
Bypass, Program Inc/ Dec, Trigger
Power Requirements
AC120V, 60Hz (US and Canadian models) AC240V, 50Hz (British model) AC230V, 50 Hz (General model)
Power Consumption
25W

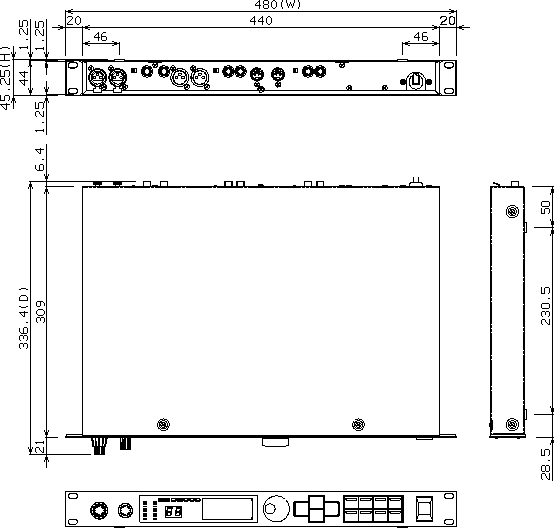

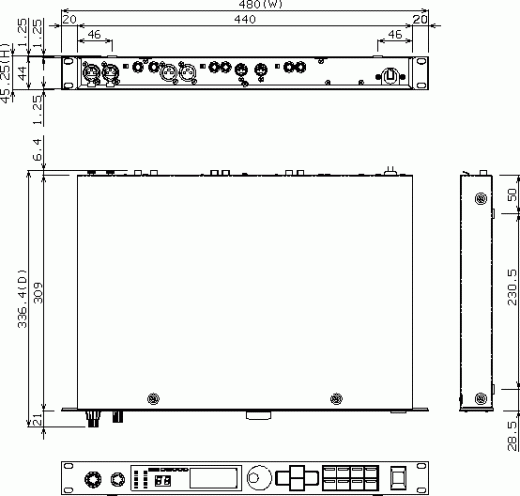

Dimensions (W x H x D)
480 x 45.2 x 336.4 mm (18-7/8″ x 1-13/16″ x 13-1/4″)
Weight
4.7 kg (10 lbs 5.8 oz)
