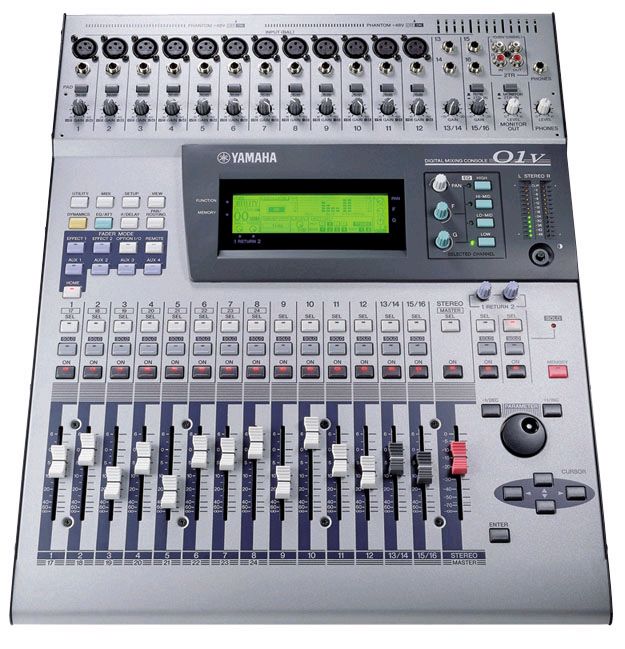

Propriétés techniques
| Sampling Frequency | Internal: 44.1 kHz; External: 44.1 kHz(-10%) to 48 kHz (+6%) |
|---|---|
| Signal Delay | Less than 2.5 ms at fs = 44.1 kHz, CH INPUT to ST OUT |
| Fader | 15 x 60 mm motorized |
| Fader Resolution | 0 to -72, -infinity dB (128 steps, 60 mm) master faders except ST OUT; +6 to -72, -infinity dB (128 steps, 60 mm) other faders; 0 to -96, – infinity dB (128 steps, 60 mm) ST OUT fader |
| Total Harmonic Distortion (Input Gain = Min.) | Less than 0.1% 20 Hz to 20 kHz, at +14 dB into 600 ohm; Less than 0.02% 1 kHz, at + 18 dB into 600 ohm, CH IN to ST OUT |
| Frequency Response | +1, -3 dB 20 Hz to 20 kHz, at +4 dB into 600 ohm |
| Dynamic Range (maximum level to noise level) | 110 dB typ. DA converter (ST OUT); 105 dB typ. AD + DA (to ST OUT) |
| Hum and Noise | (20 Hz to 20 kHz) Rs = 150 ohm, Input gain = Max, Input pad=0 dB, Input sensitivity = -60dB; Measured with a 6dB/oct filter at 12.7 kHz; equivalent to a 20kHz filter with an infinite dB/oct attenuation; -128 dB Equivalent input noise; -94 dB Residual output noise, ST OUT, ST OUT off; -94 dB (98 dB S/N) ST OUT, ST fader at nominal level and all CH IN faders at minimum level; -64 dB (68 dB S/N) ST OUT, ST fader at nominal level and one CH IN fader at nominal level |
| Maximum Voltage Gain | 70 dB CH IN (CH 1-12) to ST OUT/OMNI (BUS) OUT; 70 dB CH IN (CH 1-12) to OMNI (AUX) OUT (via pre input fader); 36 dB CH IN (CH 13-16) to ST OUT; 76 dB CH IN (CH 1-12) to MONITOR OUT (via ST bus) |
| Crosstalk@1kHz | -70 dB adjacent input channels (CH 1-12); -60 dB adjacent input channels (CH 13-16); -70 dB input to output |
| Memory/Libraries | Scene:99; EQ: 80(40 preset, 40 user); Effects: 99 (42 preset, 57 user); Dynamics: 80 (40 preset, 40 user) |
| Analog Controls | INPUT (1-12): PAD (0/26), GAIN (-16 to -60), PHANTOM + 48 V switch (simultaneously supplied to CH 1-6, 7-12); INPUT (13-14): GAIN (+10 to – 20); INPUT (15-16): GAIN (+10 to -20), INPUT SELECT (15-16, 2TR IN); OUTPUT: MONITOR SELECT (2TR IN, MONITOR), MONITOR LEVEL CONTROL, PHONES LEVEL CONTROL |
| Digital Section ON and SEL Keys | CH 1-12, CH 13-14, CH 15-16, STEREO/MASTER (AUX 1-4, EFFECT 1-2), RETURN 1,2 |
| Digital FADERS | CH 1-12, CH 13-14, CH 15-16, STEREO/MASTER (AUX 1-4, EFFECT 1,2) |
| Digital ENCODERS | RETURN 1,2 |
| Digital SOLO Keys | CH 1-12, CH 13-14, CH 15-16, RETURN 1,2 |
| Digital FADER MODE Keys | HOME, EFFECT 1, EFFECT 2, OPTION I/O, REMOTE, AUX 1, AUX2, AUX3, AUX4 |
| Digital SELECTED CHANNEL EQ Keys ENCODERS | HIGH, HI-MID, LO-MID, LOW, PAN, F (EQ), G(EQ) |
| Digital INPUT CONTROL Keys | EQ/ATT, 0/DELAY, DYNAMICS, PAN/ROUTING, VIEW |
| Digital SET UP Keys | UTILITY, MIDI, SETUP, MEMORY |
| Digital DATA ENTRY ENCODER Keys | PARAMETER (24 detents/rotation); +1/INC, -1/DEC, ENTER (push to fix parameter) |
| Digital CURSOR Keys | LEFT, RIGHT, UP, DOWN |
| Display | LCD: 320 x 80 dots, Graphic LCD w/backlight and contrast control pot; LEDs: ST OUT meter, 12 elements x 2, SOLO mode LED |
| Power Requirements | USA and Canada: 120 V AC, 60 Hz; European: 230 V AC, 50 Hz |
| Power Consumption | 70 W |
| Dimensions (W x H x D) | 430 x 148 x 520 mm (16.9″ x 5.8″ x 20.4″) |
| Weight | 12.5 kg (27.5 lbs) |
| Security Cover | Four M3 fixing holes for user-made cover |
