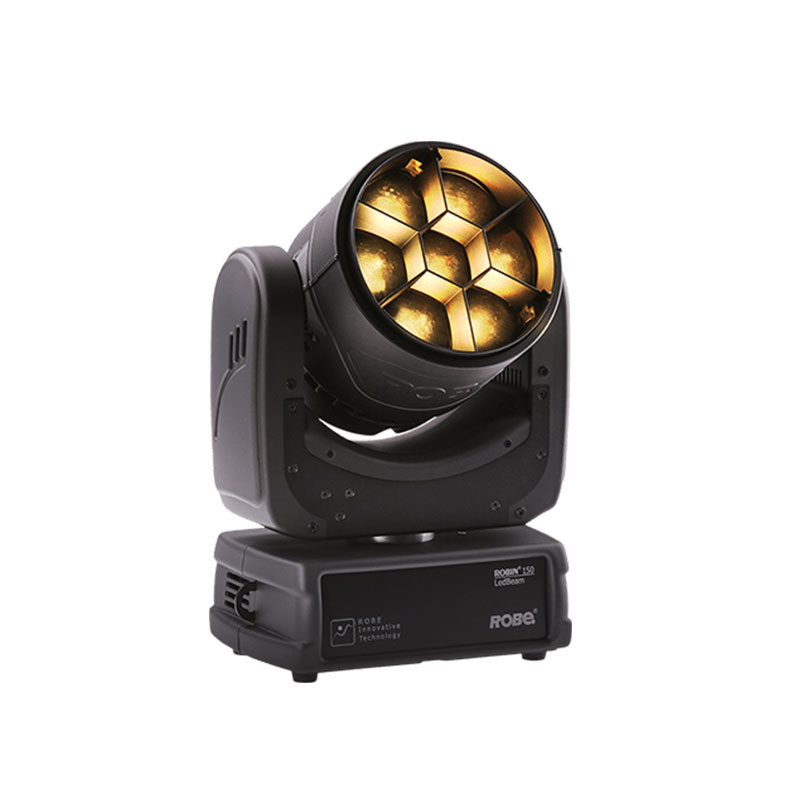

Une plage de zoom spectaculaire de 3,8 ° à 60 ° avec un système optique éminent conçu sur mesure et un filtre anti-givre supplémentaire de 2 ° pour des bords lisses et une meilleure homogénéisation des couleurs. C’est le ROBIN® LEDBeam 150 FW – Fresnel Wash, offrant des poursuites colorées attrayantes et des transitions douces, alimenté par un groupe de LED multichip 30W RGBW haute puissance.
Propriétés techniques
-
SOURCE
- Light source type: 7x 30W RGBW multichips
- LED life expectancy: min. 20.000 hours
- Typical lumen maintenance: 70% @ 20.000 hours
-
OPTICAL SYSTEM
- Robe’s proprietary optical design
- High – efficiency zoom optical system, ratio 15,5:1
- Zoom range: 3.8° – 60°
- Diffusion filter imbedded
- Fixture total lumen output: 2.288 lm
- Light output: 8.190 lx @ 5 m
-
DYNAMIC EFFECTS
- Colour mixing mode RGBW or CMY
- Variable CTO: 2.700K – 8.000K
- Virtual Colour Wheel: with 66 preset swatches
- Tungsten lamp effect at whites: 2.700K and 3.200K (red shift and thermal delay)
- Motorized zoom
- Pre-programmed random strobe & pulse effects
- High resolution electronic dimming: 0 – 100%
-
CONTROL AND PROGRAMMING
- Setting & Addressing: two-row LCD display & 4 control buttons, stand-alone operation with 3 editable programs (each up to 40 steps)
- Protocols: USITT DMX-512, RDM
- Wireless CRMX™ technology from Lumen Radio: On request
- DMX Protocol modes: 2
- Control channels: 22, 16
- Pan/Tilt resolution: 8 or 16 bit
- RGBW or CMY: 8 or 16 bit
- Zoom: 8 or 16 bit
- Dimmer: 8 or 16 bit (internal 18 bit)
-
MOVEMENT
- Pan movement: 450°
- Tilt movement: 228°
- Movement control: Standard and Speed
- Controllable speed of Pan/Tilt movement
- Automatic Pan/Tilt position correction
-
THERMAL SPECIFICATION
- Maximum ambient temperature: 45°C (113°F)
- Maximum surface temperature: 80°C (176°F)
- Minimum operating temperature: -5°C (23°F)
-
ELECTRICAL SPECIFICATION AND CONNECTIONS
- Power supply: Electronic auto-ranging
- Input voltage range: 100-240 V, 50/60 Hz
- Power consumption: Max. 220 W
- Power in/out connector: Neutrik powerCON in/out
- DMX and RDM data in/out: Locking 5-pin XLR
-
APPROVALS
- CE Compliant
- cETLus Compliant (pending)
-
MECHANICAL SPECIFICATION
- Height: 337 mm (13.27″)
- Width: 244 mm (9.6″)
- Depth: 149 mm (5.87″)
- Weight: 5.7 kg (12.6 lbs)
-
RIGGING
- Mounting points: 1 pair of ¼-turn locks
- 1x Omega adaptor with ¼-turn quick locks
- Universal operating position
- Safety cable attachment point
