ROBE – BMFL Wash

280,00€ HT/JOUR

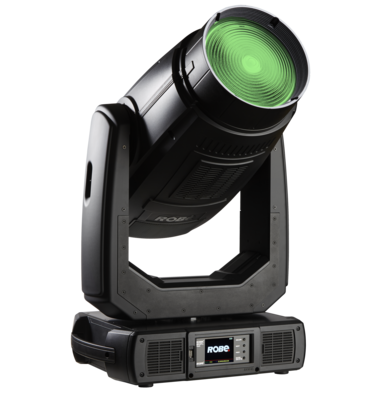

Projecteur ROBE BMFL Wash 1700W

  • SOURCE

    • Light source type: Compact short-arc metal halide lamp
    • Base: PGJX28
    • Approved model: OSRAM Lok-it! HTI 1700/PS
    • Lifetime: 750 hours @ 1.700 W / 1.500 W / Quiet mode
    • CRI: CRI 92+
    • Colour temperature: 6.000K
    • Control: Automatic and remote on/off
    • Ballast: Electronic

  • OPTICAL SYSTEM

    • Robe’s proprietary optical design
    • High – efficiency zoom optical system, ratio 12:1
    • Zoom range: 4,5° – 55°
    • Output Lens diameter: 200 mm
    • Dichroic glass reflector for maximising the light efficiency
    • High efficient component optics
    • Fixture total lumen output
      • 38.000 lm at 1.700 W
      • 32.680 lm at 1.500 W
      • 27.630 lm at 1.200 W (Quiet mode)
    • Light output: 125.000 lx @ 5 m, 1250 lx @ 50 m

  • DYNAMIC EFFECTS

    • Cyan: 0–100 %
    • Magenta: 0–100 %
    • Yellow: 0–100 %
    • Variable CTO: 2.700–6.000 K
    • Colour Wheel 1: 6 fixed dichroic colours: deep red, deep blue, orange, green, magenta, congo blue + white
    • Colour Wheel 2: 6 replaceable « SLOT&LOCK » dichroic colours: pink, lavender, laser green, 9000 K CTB, minus half and minus green + white
    • Internal barndoors: individual position control of 4 “doors”, +/- 90° module rotation (Patent pending)
    • Frost: Interchangeable – light, medium (standard), heavy
    • Motorized zoom
    • Edge colour correction
    • Scrim: Graduated filter position control, +/- 180° module rotation (Patent pending)
    • Shutter: Separate dual blade system, Variable strobe effect up to 10 Hz, full black out
    • Dimmer: Optimized dual blade system for exceptional smooth dimming

  • CONTROL AND PROGRAMMING

    • Setting & Addressing: ROBE Navigation System 2 (RNS2)
    • Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding
    • Protocols: USITT DMX-512, RDM, Art-Net, MA Net, MA Net2, sACN
    • Wireless CRMX™ technology from Lumen Radio
    • Protocol modes
      • BMFL™ Wash: 2 DMX Modes
    • Control channels
      • BMFL™ Wash: 25, 21
    • Pan/Tilt resolution: 16 bit
    • CMY & CTO: 8 bit
    • Colour wheel positioning: 8 or 16 bit
    • Internal barndoor module movement & rotation: 8 bit
    • Scrim: 8 bit
    • Frost: 8 bit
    • Zoom: 8 bit
    • Edge colour correction: 8 bit
    • Dimmer: 8 or 16 bit

  • MOVEMENT

    • Pan movement: 540°
    • Tilt movement: 270°
    • Movement control: Standard and Speed
    • Controllable speed of Pan/Tilt movement
    • EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patent pending)
    • Automatic Pan/Tilt position correction

  • OPTIONAL XF MODULE CONTAINS

    • Scrim: Graduated filter position control, +/- 180° module rotation (Patent pending)
    • Internal barndoors: individual position control of 4 “doors”, +/- 90° module rotation (Patent pending)

  • THERMAL

    • Maximum ambient temperature: 50 °C (122 °F)
    • Maximum surface temperature: 100 °C (212 °F)
    • Minimum operating temperature: -5 °C (23 °F)

  • ELECTRICAL SPECIFICATION AND CONNECTIONS

    • Power supply: Electronic auto-ranging
    • Input voltage range: 200–240 V, 50/60 Hz
    • Power consumption: 2.000 W at 230 V / 50 Hz
    • Power in connector: Neutrik powerCON
    • DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
    • Ethernet port in: RJ45

  • APPROVALS

    • cETLus Compliant
    • CE Compliant

Propriétés techniques

  • Height: 826 mm (32.5″) – head in vertical position
  • Width: 483 mm (19″)
  • Depth: 335 mm (13.2″)
  • Weight: 35 kg (77.2 lbs)
