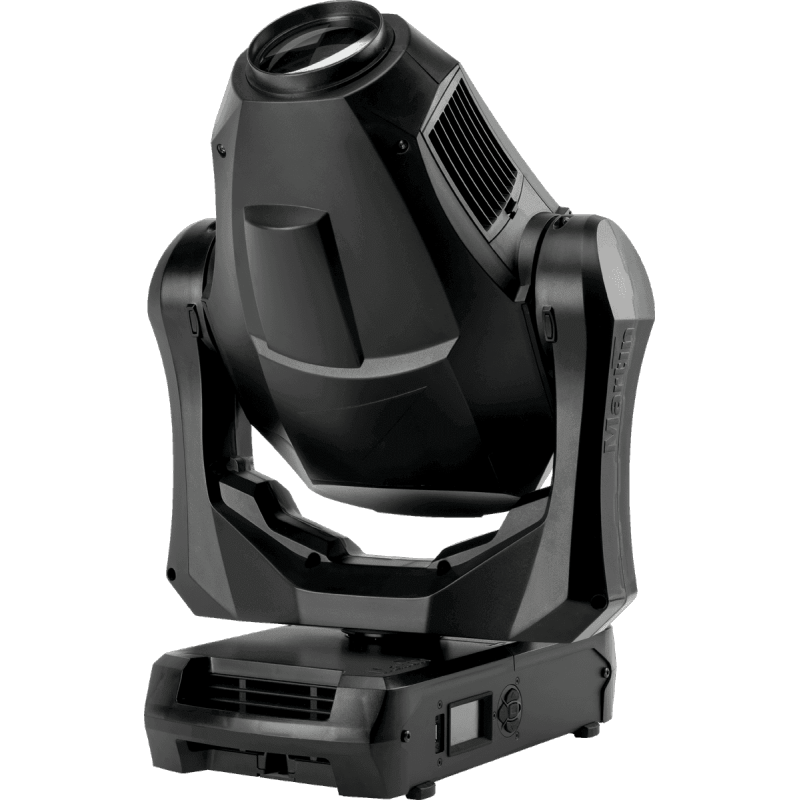

With all this and the new Animotion™ FX system that allows never-before seen beam animations, the market is now finally seeing the first real 700/800 W discharge lamp replacement in a profile fixture that effectively harnesses cutting-edge LED technology.
- First real alternative to a 700/800 watt HID fixture
- Flat field, crisp image, high contrast
- Full feature set including CMY color mixing and 1:3 zoom
- Pure white 6500 K LEDs combined with fast, responsive and even CMY color mixing
- Very low weight and compact design
- Consistent photometric performance via LED technology
Dynamic Effects
- Color mixing: CMY, independently variable 0 – 100%
- Color wheel: 6 color filters plus open

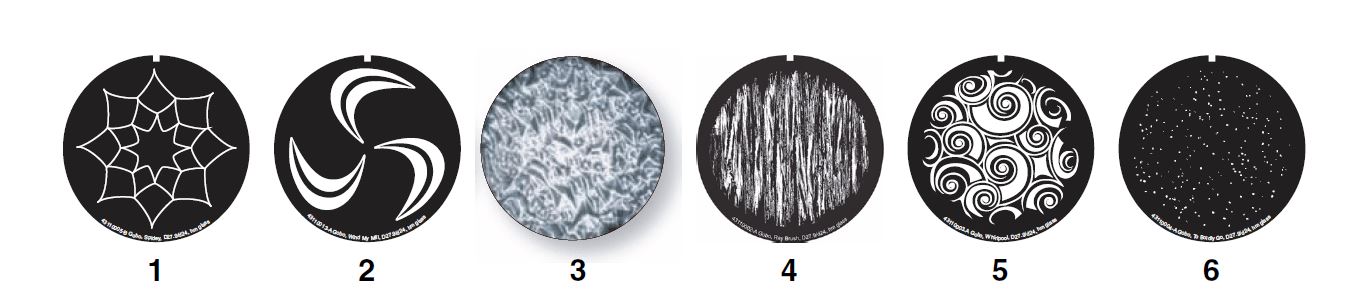

- Rotating gobo wheel: 6 interchangeable gobos plus open, wheel rotation, gobo rotation, indexing and shake
- Static gobo wheel: 10 gobos plus open, wheel indexing, rotation and shake
- Beam effects: Rotating three-facet prism
- Zoom: 12° – 36° (1:3)
- Pan and tilt speed: Adjustable via onboard control panel and DMX
- Focus: Motorized, with zoom-focus tracking
- Iris: 0 – 100%, pulse effects
- Shutter effect: Electronic, with variable speed regular and random strobe
- Electronic dimming: Four dimming curve options
- Pan: 540°
- Tilt: 268°
Control and Programming
- Control system: DMX
- RDM: Implemented
- Control resolution: 8-bit, with 16-bit control of dimming, gobo indexing, zoom, focus, pan and tilt
- DMX channels: 19/27
- Setting and addressing: Control panel with backlit graphic display
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Transceiver: RS-485
- Fixture software update: Direct using USB memory stick or via DMX link using Martin USB Duo™ DMX Interface Box
Optics
- Light source: 475 W LED engine
- Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
- *Figure obtained under manufacturer´s test conditions
Construction
- Color: Black
- Housing: High-impact flame-retardant thermoplastic
- Protection rating: IP20
Installation
- Mounting points: 4 pairs of quarter-turn locks
- Location: Indoor use only, must be fastened to surface or structure
- Orientation: Any
- Minimum distance to combustible materials: 0.2 m
- Minimum distance to illuminated surfaces: 2.0 m

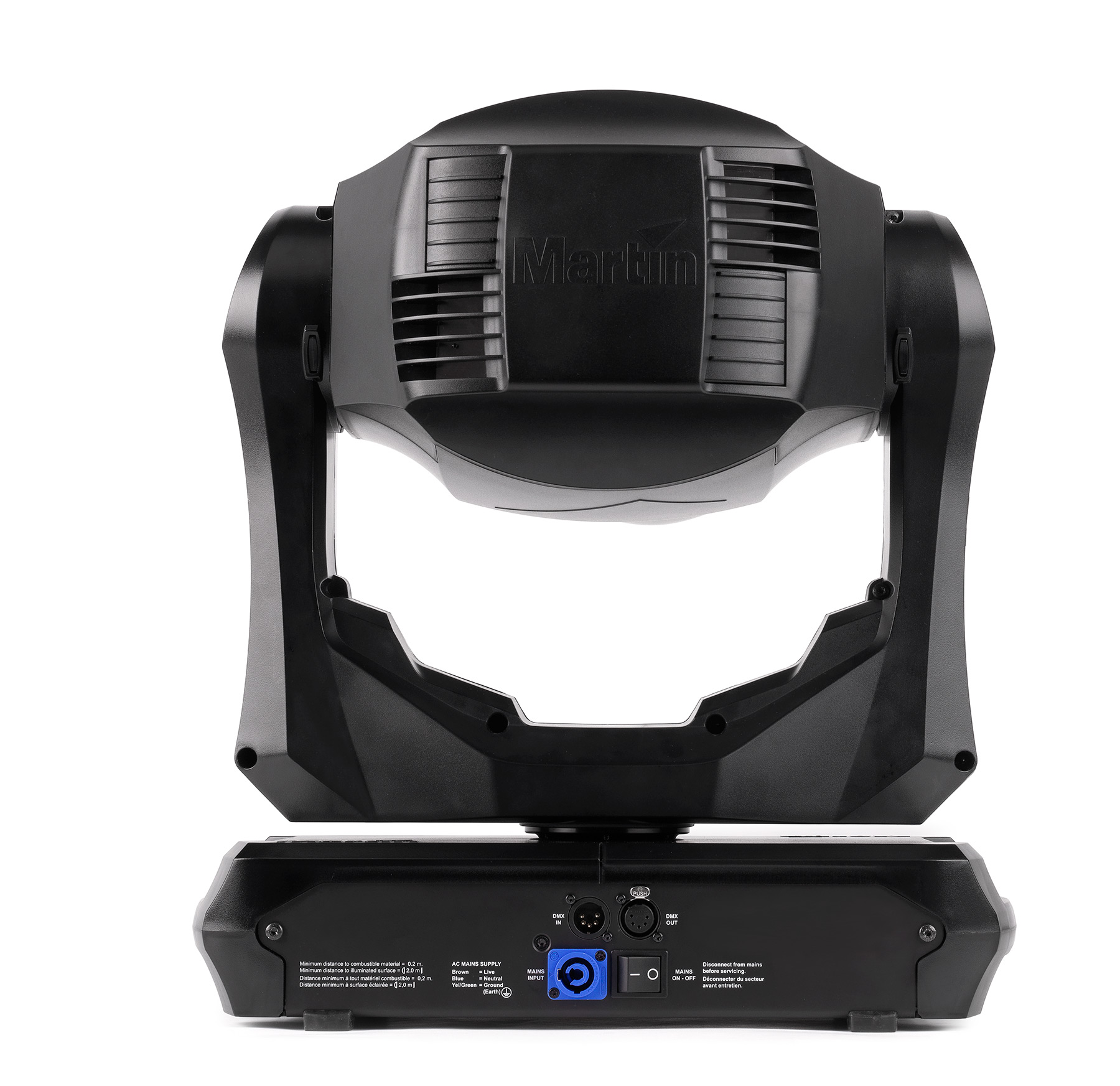

Connections
- AC power input: Neutrik PowerCon
- DMX and RDM data in/out: 5-pin locking XLR
Electrical
- AC power: 120-240 V nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Maximum total power consumption: 750 W
- Typical half-cycle RMS inrush current: 10.3 A
- Typical power consumption, all effects static, zero light output: Approx. 50 W
- Maximum total power consumption: 750 W
- Typical half-cycle RMS inrush current: 10.3 A
Typical Power and Current
- 120 V, 60 Hz: 4.8 A, 576 W, PF 0.999
- 208 V, 60 Hz: 2.8 A, 568 W, PF 0.991
- 230 V, 50 Hz: 2.5 A, 565 W, PF 0.988
- 240 V, 50 Hz: 2.4 A, 565 W, PF 0.988
- Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Thermal
- Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
- Maximum ambient temperature (Ta max.): 40° C
- Minimum ambient temperature (Ta min.): 5° C
- Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
Approvals
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471
- EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
- US safety (pending): UL 1573
- US EMC: FCC Part 15 Class A
- Canadian safety (pending): CSA C22.2 No. E598-2-17 (CSA E60598-1)
- Canadian EMC: ICES-003 Class A
- Australia/NZ: C-TICK N4241
