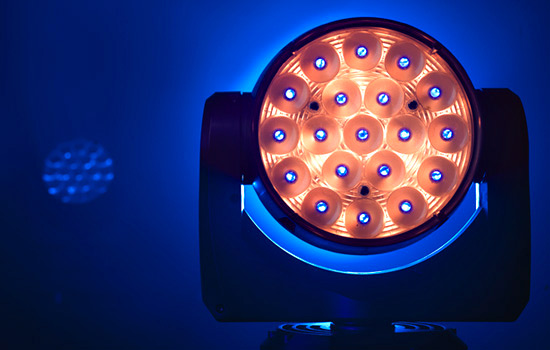

La nouvelle lyre LED à effets AURA de chez MARTIN By Harman , continue dans la lignée de sa soeur le MAC AURA mais dispose d’une puissance supérieure grâce à ses LED de très forte puissance .

Propriétés techniques

PhysicalLength (across yoke): 302 mm (11.9 in.)Width (across yoke): 302 mm (11.9 in.)Height (head straight up): 360 mm (14.2 in.)Weight (without accessories): 6.5 kg (14.4 lbs.)

Dynamic EffectsBeam color mixing: RGBWAura (secondary lens array illumination) color mixing:RGBBeam color temperature control: CTO, variable 10 000 – 2500 KBeam and aura electronic ‘color wheel’ effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random colorBeam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effectsPre-programmed effects: Range of independent and synchronized Beam and Aura FX, two combinableElectronic dimming: Independent beam and aura, four dimming curve optionsZoom: 10° – 60° (one-tenth peak angle)Pan: 540°Tilt: 232°Pan and tilt speed: Adjustable via onboard control panel and DMX

Control and ProgrammingControl options: Independent or synchronized Beam and Aura controlControl system: DMX, RDMControl resolution: 8-bit, with 16-bit control of pan & tiltDMX channels: 14/25Setting and addressing: Control panel with backlit graphic displayDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Transceiver: RS-485Firmware update: Via DMX with Martin™ USB Duo DMX Interface Box

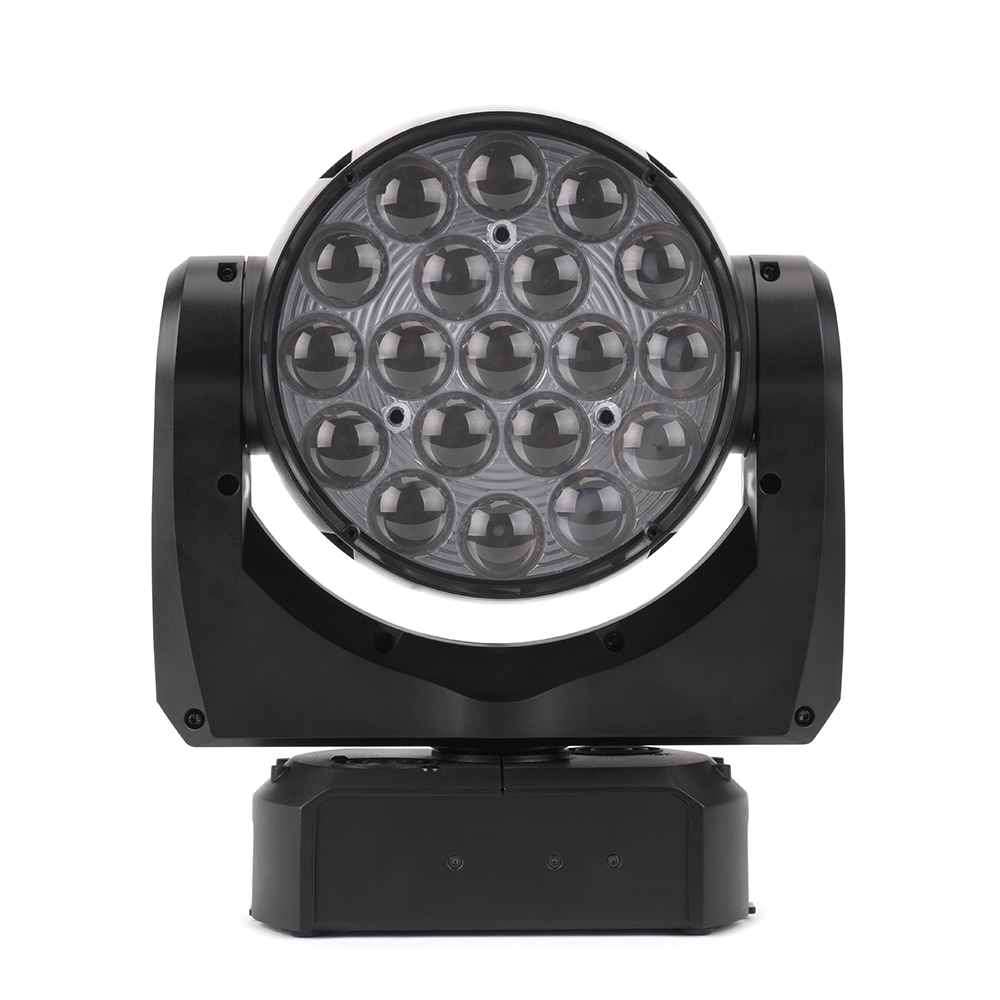

Optics and Photometric DataLight source: 19x 15W RGBW LED Array SystemLED refresh rate: Beam 1200 Hz, Aura 4395 HzMinimum LED lifetime: 50 000 hours (to >70% luminous output)*Total luminous output (wide, one-tenth peak): 6000 lumensTotal luminous output (narrow, one-tenth peak): 4300 lumensVideo compatibility: Designed for use with HD/high-speed video cameras*Figure obtained under manufacturer´s test conditions

ConstructionColor: BlackHousing: High-impact thermoplastic, flame-retardant to UL 94 5VAProtection rating: IP20

InstallationMounting points: M12 hole for rigging clamp, attachment points for surface-mounting bracketOrientation: AnyMinimum distance to combustible materials: 200 mm (8 in.) from fixtureMinimum distance to illuminated surfaces: 1 m (3 ft. 4 in.) from fixtureLocation: Indoor use only, must be fastened to surface or structure

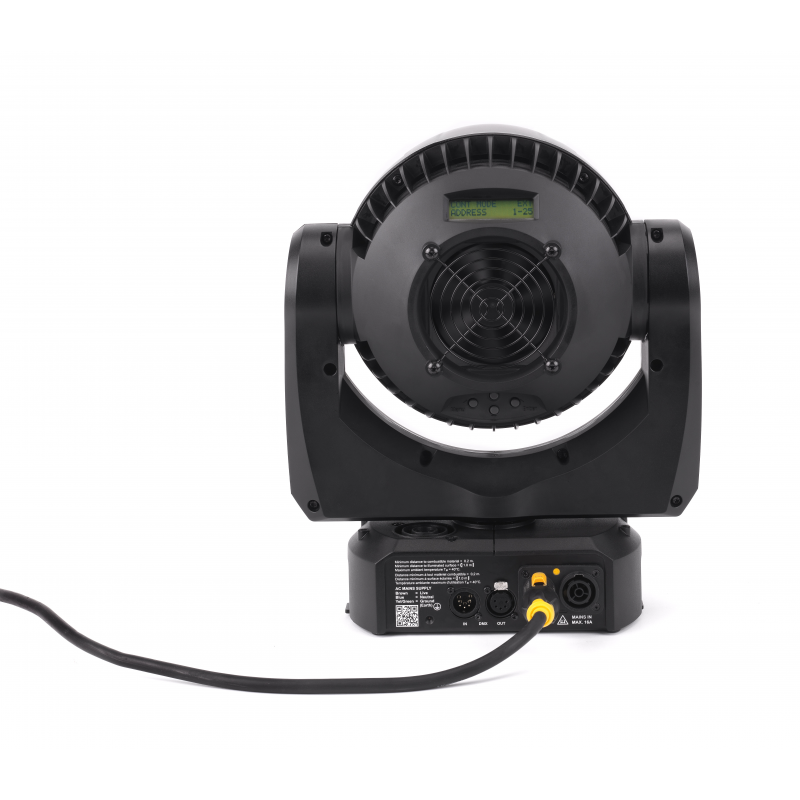

ConnectionsAC power: Neutrik PowerCON TRUE1 NAC3PX dual socketAC power input socket: Accepts Neutrik PowerCON TRUE1 NAC3FX-W cable connectorAC power thru socket: Accepts Neutrik PowerCON TRUE1 NAC3MX-W cable connectorDMX data in/out: 5-pin locking XLR

ElectricalMaximum power consumption: 400 WPower supply unit: Auto-ranging electronic switch modeAC power: 100-240 V nominal, 50/60 HzTypical half-cycle RMS inrush current: 10.7 APower consumption, all effects static, zero light output:<25 W

Typical Power and Current100 V, 60 Hz: 359 W, 3.8 A, PF 0.99120 V, 60 Hz: 355 W, 3.2 A, PF 0.99208 V, 60 Hz: 350 W, 1.8 A, PF 0.97230 V, 50 Hz: 349 W, 1.7 A, PF 0.95240 V, 50 Hz: 349 W, 1.6 A, PF 0.95Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

ThermalCooling: Forced air (temperature-regulated, low noise, user-definable levels)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Total heat dissipation (calculated, +/- 10%): 1230 BTU/hr.

ApprovalsEU safety: EN 60598-2-17 (EN 60598-1), EN 62471EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547US safety: UL 1573US EMC: FCC Part 15 Class ACanadian safety: CSA E598-2-17 (CSA E60598-1)Canadian EMC: ICES-003 Class AAustralia/NZ: C-TICK N4241

Included ItemsM12 bolt suitable for use with Martin rigging clampsNote that power cables and connectors are not included and must be ordered separately

AccessoriesPower cablesPower input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786Power Throughput Cable, H07RN-F, 2.5 mm2, 14 AWG, Neutrik TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784Power Throughput Cable, H07RN-F, 2.5 mm2, 14 AWG, Neutrik TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785Power Throughput Cable, H07RN-F, 2.5 mm2, 14 AWG, Neutrik TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796Power connectorsCable connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789Cable Connector, Neutrik PowerCON TRUE1 NAC3MX-W (male): P/N 91611788Installation hardwareQuick surface mounting bracket for MAC Aura XB, set of 5: P/N 91606018G-clamp: P/N 91602003Half-coupler (tube) clamp: P/N 91602005Quick trigger clamp: P/N 91602007Flightcase6-unit flightcase for MAC Aura™: P/N 91515020Optical AccessoriesMAC Aura / Aura XB Soft Lens Kit: P/N 91611730

Related ItemsMartin USB Duo™ DMX Interface Box: P/N 90703010Martin DMX 5.3 Splitter™: P/N 90758140Martin RDM 5.5 Splitter™: P/N 90758150
