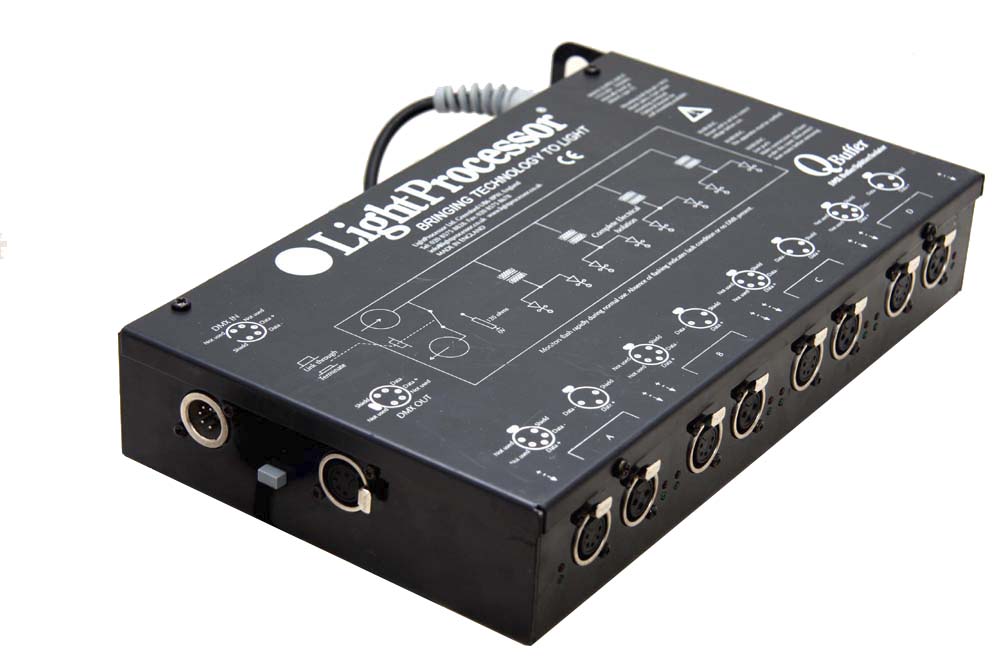

LIGHT PROCESSOR – Q BUFFER Splitter 1 IN 4 OUT

Power Supply 115/230V AC 50-60Hz (selectable)
Signal Input USITT DMX512 via 5-pin XLR
Isolated Outputs 4 x 3-pin XLR and 4 x 5-pin XLR (all 5-pin version available on request)
Dimensions QBuffer – 338mm x 191mm x 59mm.
DMXDistibutor – 1U (44mm) x 19″ (482mm) x 200 mm
Weight QBuffer – 4kg
DMXDistributor – 3.8Kg.
Fixing QBuffer – M10 bolt or optional wall mounting bracket
DMX Distributor – Rack mount
