Propriétés techniques

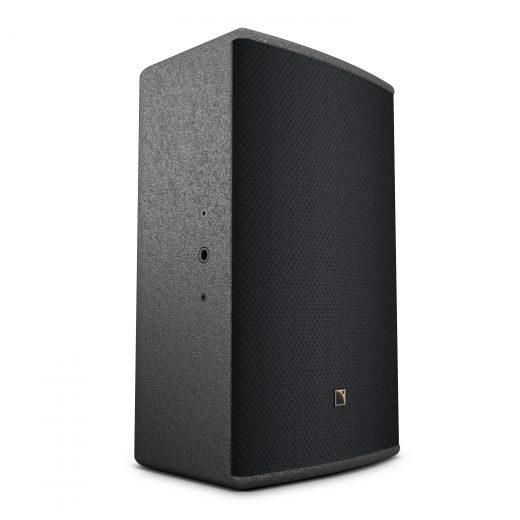

- Description : Passive 2-way coaxial enclosure, controlled and amplified by LA4X / LA8
- Usable bandwidth (-10 dB) : 60 Hz – 20 kHz ([X8])
- Maximum SPL : 127 dB ([X8])
- Nominal directivity Axisymmetric : 100°
- Monitoring angle : 35°
- Transducers :
- LF : 1 Å~ 8″, bass-reflex, laminar vents
- HF: 1 Å~ 1.5″ compression driver neodymium, partial horn
- Nominal impedance : 8 Ω
- Connectors IN : SpeakON®
- LINK : SpeakON®
- Rigging and handling : ~ handle
- DIN580-compatible M8 threaded insert
- 4 ~ M10 threaded inserts
- 35 mm pole socket
- Cabinet First grade : Baltic birch and beech plywood
- Finish : Dark Grey brown PANTONE 426C
- Pure white RAL 9010
- Custom RAL code on special order
- IP : IP43
