Propriétés techniques
- Freq. response is 2 Hz to 160 kHz in clean audio mode (+0, -3 dB). Response is shaped in distortion modes (Dist 2, Dist 3).
- Dynamic range 110 dB from max. output to min. output in 1:1 mode. Greater than 100 dB signal to noise in distort 3 mode.
- Distortion ranges between .02% and 20% depending on distortion mode and release times set on front panel.
- DC coupled output – High quality input caps.
- Input impedance is 20K Ohms, Output impedance is < 75 ohms
- Time constants – Attack range 50uS – 50mS. Release range .05 sec to 3.5 seconds, normal modes and up to 20 seconds in 10:1 opto mode. Time constants are dependant on ratio.

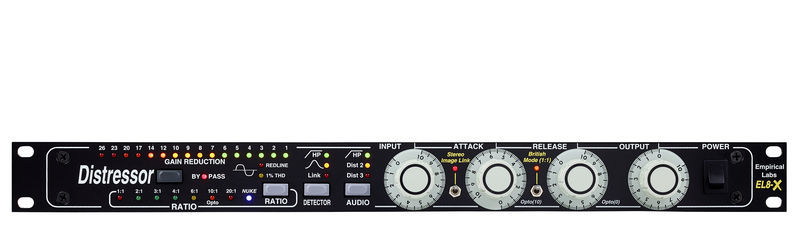

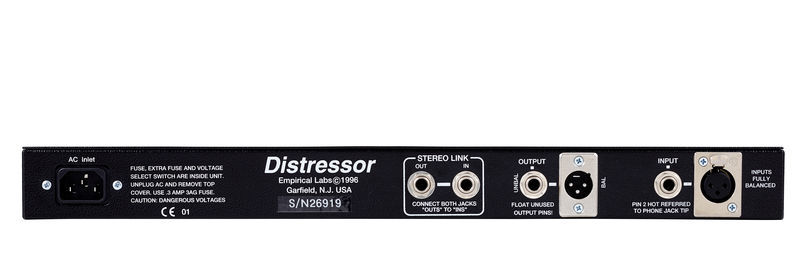

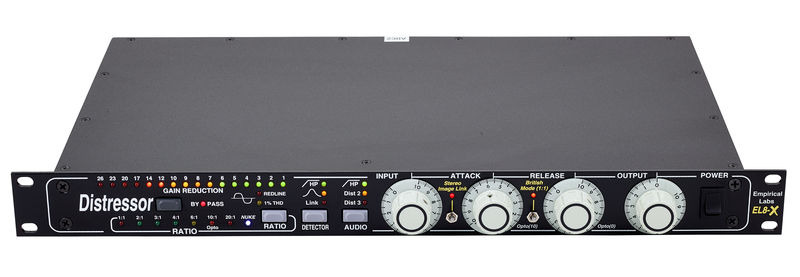

- Metal Chassis – single height 1.75″ high, 10″ deep, 19″ wide.
- Shipping info – 12.1 lbs mono, 24.2 lbs Stereo pair. Mono box dimensions 22.5″ x 18.5″ x 3 1/4″. Stereo Pair box dimensions 22.5″ x 18.5″ x 6 1/4
