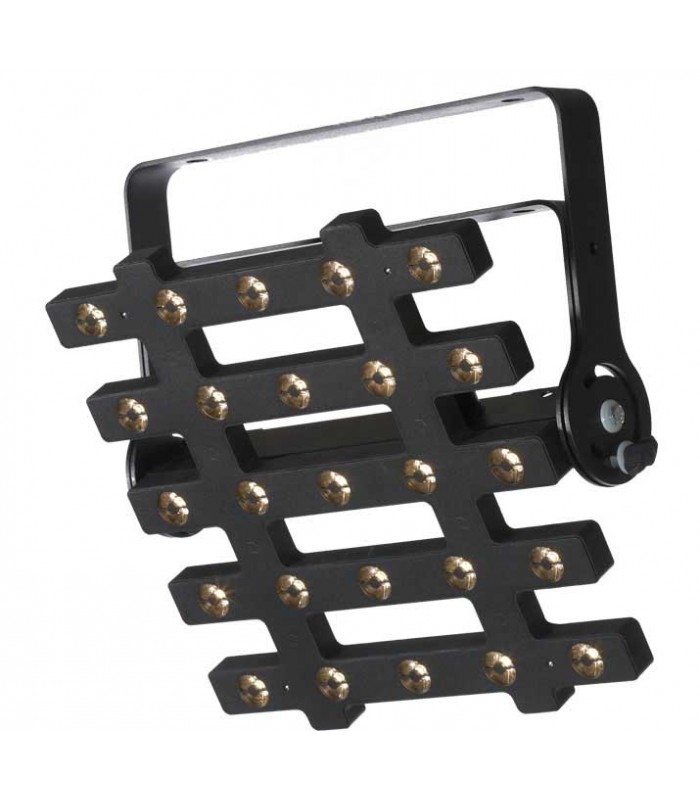

This LED matrix fixture is capable of projecting volumetric graphics. It combines high-output, calibrated, warm-white LEDs with custom optics to generate extremely narrow beams that far exceed the intensity of standard LED screens.
When assembled together, Elidy panels form a unique LED wall. It can be arranged into screens, columns or three-dimensional shapes and programmed to provide projection effects.
Elidy is modular in form, based around a panel of 25 (5 x 5) very high power LEDs which are driven by state-of-the-art electronics. Up to 9 Elidy panels can be run off one power supply unit and assembled to form a screen of up to 225 LEDs (1 m2). These screens can then be rigged side by side to form larger projection areas.
Due to its revolutionary LED driver design, Elidy offers perfectly smooth dimming over the complete dimming range. Its patented system implements proprietary wide-range, ultra-fine dimming that allows extremely smooth dimming over 100,000 imperceptible steps with absolutely no cut-out or stepping when fading up or down. This dimming mimics traditional tungsten sources in a way that makes it perfectly suitable for use in theatre or studio alike where such high LED dimming quality is necessary.
Elidy implements an advanced pixel-mapping interface (the Pixel Engine) that is intuitive and user-friendly, making it perfect for creating truly funky animations, from the simplest to the most complex. Data management is handled using conventional DMX daisy-chaining, but also via unique ArtNet daisy-chaining, both simpler and faster than conventional star-shape cabling. Finally, Elidy has full sACN networking capabilities, especially useful for the smooth handling of big lighting systems with complex data networks.
Elidy integrates Animation Maker, a powerful GIF sequencer which controls Elidy like a moving light, yet uses the minimum number of DMX channels. Effects such as dimming, shuttering, iris and strobe effects can be brought into play and combined with two banks of animated GIF images. The software includes 130 factory-set GIFs with room for the addition of 40 customized GIFs.
Animation Maker can be controlled independently from Pixel Engine, effectively creating two separate media engines. Control of each is via DMX or ArtNet and now sACN, each with its own network feed. Each engine can receive signals from a combination of any two of the three protocols.Note: PX9 power supply and Spider Box (optional for star wiring) rent separately.
