Propriétés techniques
| VT-737SP SPECIFICATIONS | |
|---|---|
| Circuit topology | Four dual triode vacuum tubes (Sovtek 6922), high-voltage discrete Class A |
| Gain Range | Microphone: Transformer balanced 850/2500 ohm, 0dB to +58dB Instrument: Unbalanced 1 meg ohm, 0dB to+30dB Line: Balanced Class A 20k ohms, -27dB to 28dB |
| Maximum input level and connector types | Microphone26dB@25Hz, +30dB@1kHz balanced XLR Instrument+30dB unbalanced front panel jack socket Line +36dB balanced XLR |
| Maximum output level | +30dB balanced 600 ohms, DC coupled, discrete Class A |
| Output type and gain | XLR connector, output trim gain -45dB to20dB |
| Noise 20kHz unweighted | -92dB |
| Noise microphone EIN | -116dB, 22Hz to 22kHz unweighted |
| Distortion THD, IMD | 0.5% |
| Frequency response -/2.5dB | 10Hz to 120kHz input filter included |
| Frequency response -3dB | 1Hz to 200kHz line in-out |

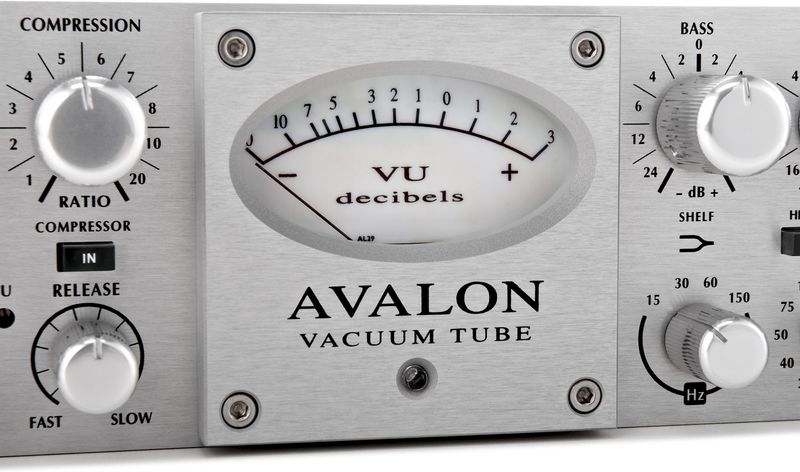

| VU meter and gain reduction | High quality illuminated OVU =+4dB and gain reduction to -20dB |
| High cut filter | Variable 6dB per octave 30Hz to 140Hz |
| Compressor type | Optical passive attenuator incorporating twin vacuum tubes and stereo link |
| Threshold – Ratio | Threshold variable -30dB to +20dB, ratio-compression variable 1:1 to 20:1 |
| Attack – Release | Attack variable 2mS to 200mS, release variable 100mS to 5 seconds |
| Equalizer type | Discrete Class A, variable active and switched passive design |
| Frequency bands (4) | Treble – switched 10kHz, 15kHz, 20kHz, 32kHz, +/- 20dB range, shelf High mid – variable 200Hz to 2k8Hz and 2kHz to 28kHz, +/- 16dB range, hi-lo Q Low mid – variable 30Hz to 450Hz and 300Hz to 4k5Hz, +/- 16dB range, hi-lo Q Bass – switched 15Hz, 30Hz, 60Hz, 150Hz, +/- 24dB range, shelf |
| AC power | Internal toroidal 100v to 240v, 50-60Hz selectable, 75 watts maximum |
| Dimensions | 19 x 12 x 3.5 in (482 x 305 x 89mm) |
| Weight | 22lbs (10kg) |
| Dimensions-shipping carton | 21 x 18 x 8 in (533 x 457 x 203mm) |
| Weight-packed | 26lbs (11.8kg) |
